Rated Volt:110V-690V
Frequency:50/60HZ
Wiring:3P3W/3P4W
Warranty:18 months
Installation: Wall-mounted
Standard:IEC61000/62477

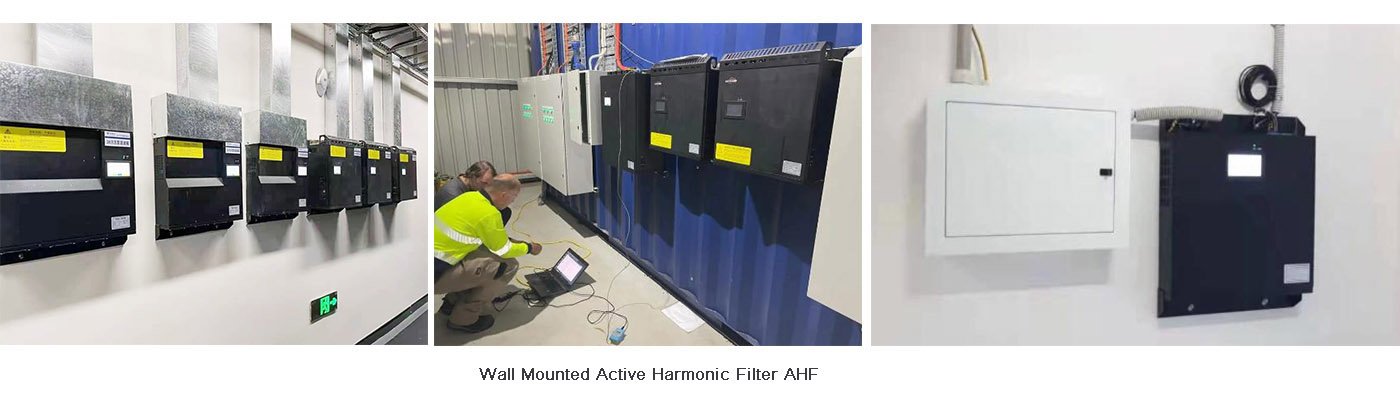

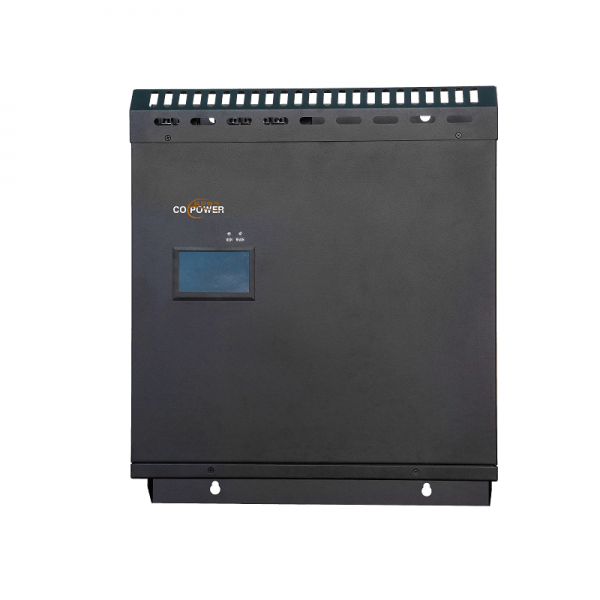

CoEpower wall-mounted series Active harmonic filters（AHF for short ) is a more flexible installation with excellent compact modular design, The Maximum size for the single module is 150A, and it also can be connected in parallel as a floor stand cabinet solution. Hanging on the wall saves much space and also offers good convenience to space-limited installation sites.
CoEpower Active harmonic filter is based on IGBT-based inverter functions of dynamic harmonic compensation (varying amplitude and frequency) and reactive power compensation (leading or lagging). This AHF works by injecting in a current of the same magnitude but opposite in phase in the distorted electric power system to offset the harmonic, thus reaching a THDI of less than 5%, The advanced NPC 3-level topology design, and DSP+FFT high-speed operational capability supports a stable ultrafast working performance without overload.
| Rated Voltage | 220-690V |
| Rated Capacity | 15A-150A single module/unlimited for parallel |
| Frequency | 50/60Hz |
| Wiring Mode | 3P3W/3P4W |
| Filtering Range | 3-51th Order Harmonic |
| Function | Harmonic Mitigation, Reactive Compensation, Imbalance Phase Balancing |
| Full Response Time | <10ms |
| Switching Frequency | 20Khz |
| Power Loss | <2.5% |
| IP Class | IP20/Customized |
| Installation | Wall mounted/Floor stand cabinet |
| Standard | IEC61000/62477 |
| Communication | MODBUS Protocol/Optional Ethernet |
● Power factor correction (lagging and leading).
● Load balancing in three-phase systems.
● Controlled and selectable harmonic generation
● Flexible application: Modular design, embedded in standard or customized cabinet
● Low thermal loss (≤3% of rated APF kVA), efficiency ≥ 97%
● High harmonic filtering rate: Up to 98%
● High stability: Infinite impedance to the grid, avoids harmonic resonance problems
● Factory ODM Customized design service support
● Standard factory warranty is one year from the verified date of startup or customized
● NPC 3-level topology design
● DSP+FPGA high-speed operational capability
● Automatic limiter without overload
● Protection:16 ways wide protection range: overvoltage, overcurrent, over temperature.Etc
● Communication: MODBUS Protocol or Ethernet optional
Wall-mounted APF Active Power Filters (APFs) are used in various industries to improve power quality, reduce harmonic distortion, and enhance energy efficiency. Below are some key application areas:
(1) Industrial Applications
Variable Frequency Drives (VFDs) & Motors: Reduces harmonics generated by VFDs, ensuring smooth motor operation and preventing overheating.
Manufacturing Plants: Improves power quality in facilities using robotic systems, CNC machines, and welding equipment.
Steel & Metal Processing: Mitigates harmonics from electric arc furnaces (EAFs) and rolling mills, reducing stress on electrical components.
(2) Commercial Buildings & Facilities
Data Centers: Ensures stable power supply by filtering harmonics from UPS systems, servers, and cooling equipment.
Hospitals & Healthcare Facilities: Reduces electrical noise from MRI machines, X-ray equipment, and surgical instruments, ensuring equipment longevity.
Office Buildings & Shopping Malls: Improves power quality in HVAC systems, LED lighting, and escalators, reducing energy losses.
(3) Renewable Energy & Power Generation
Solar & Wind Energy Systems: Reduces harmonics from inverters, ensuring grid stability and compliance with power quality standards.
Microgrids & Smart Grids: Enhances power quality in distributed energy networks, reducing voltage fluctuations and ensuring efficient operation.
(4) Transportation & Infrastructure
Railways & Metro Systems: Mitigates harmonics from traction power systems, ensuring stable and efficient operation.
Airports: Improves power quality in baggage handling systems, runway lighting, and air traffic control systems.
Ports & Shipyards: Reduces harmonic pollution from cranes, shore-to-ship power systems, and electric vehicle (EV) chargers.
(5) Oil & Gas Industry
Offshore & Onshore Oil Rigs: Minimizes harmonic interference in drilling operations, ensuring stable performance of heavy-duty electrical equipment.
Refineries & Petrochemical Plants: Ensures reliable operation of pumps, compressors, and other motor-driven equipment.
(6) Residential & Small-Scale Applications
High-End Homes & Apartments: Improves power quality in buildings with high-tech appliances, home automation systems, and EV chargers.
Electric Vehicle (EV) Charging Stations: Reduces harmonics from fast chargers, preventing disruptions in the electrical grid.
● We are a professional power quality solution research and development design manufacturer with years of experience that will support you with more competitive technical and price support.
● We have rich application experience to provide you with more professional, precise, and better service support
● High-grand components and strict product quality control procedures offer reliable product quality.
● We have years of exporting experience to decades of regions all over the world, and multi-competitive shipping choices, which can give you more reliable, fast, and cost-effective shipping.
● TUV CE approved test item based on IEC 61000 AND IEC 62477 series standards
